358 Mesh Fence Perfectly suited to high security applications, providing excellent see through visibility extensively used with CCTV. This high performance system provides the ultimate protection against anti-climb & cut through. Suitable to be used on schools, retail parks, business parks, utility sites, airports, secure units. Detection systems are fully compatible with 358 Mesh Fence
358 Mesh Fence is designed for demanding applications. The system can have multiple additional features to aid additional security including detection and electrified fencing
| Panel height | 1.8m, 2.1m, 2.4m, 3m |
| Panel width | 2.2m, 2.4m, 3m |
| Hole size | 12.7x76.2mm, 12.5x75mm |
| Wire Thickness | 4.0mm |
| Post length | 2700mm, 3000mm, 3600mm |
| Post size | 60x60mm, 60x80mm, 80x80mm |
| Material | Steel wire |
| Surface treatment | Powder coated or PVC coated |
Warm tips: fence can be custom-made according to your request.
| Panels | Posts | | |
| | | Total number of fixings |
| Inters | Corners |
| Fence height mtrs | Panel size
H & W | Wire diameter mm | Clamp bar 40 x 5 mm | Post centres mm | Hanging bracket | Hanging bracket |
| 2 | 2000 x 2515 | 4 | 2 | 2480 | 8 | 16 |
| 2.4 | 2404 x 2515 | 4 | 2 | 2480 | 9 | 18 |
| 2.7 | 2430 x 2515 | 4 | 2 | 2480 | 9 | 18 |
| 3 | 3000 x 2515 | 4 | 2 | 2480 | 9 | 18 |
| 3.3 | 3300 x 2515 | 4 | 2 | 2480 | 9 | 18 |
| 3.6 | 3600 x 2515 | 4 | 2 | 2480 | 10 | 20 |
| 4 | 4000 x 2515 | 4 | 2 | 2480 | 11 | 22 |
| 5 | 5000 x 2515 | 4 | 2 | 2480 | 12 | 24 |
Please note: Hole centres on fixing detail can be reduced from 304mm to 152mm for additional security. Post section is determined by the height of the fence.
358 Mesh Fence Heights
1.8 metres, 2.0 metres, 2.4 metres, 2.7 metres and 3.0 metres.
High Security Anti Climb 358 Mesh
75mm x 12.5mm produced with 4.00mm +/- 0.10mm wire.
High Security Anti Climb 358 Mesh
Manufactured using 4mm wire welded at each intersection creating a strong and durable panel, the mesh aperture consists of a 76.2 x 12.7mm mesh spacing providing ultimate protection against climbing and cut-through with excellent see through visibility!
High Security Anti Climb 358 Mesh Post system
Standard posts are manufactured from 60 x 60 up to 2.4m high, rolled hollow section and include stepping provisions to suit on-site conditions. All posts include bolt-through or threaded inserts. Specially designed PROFIX Securing clamp system is used for quick and easy installation. Extra length posts can be used to
increase the fence heights above standard heights.
Posts
-
60 x 60 x 3 RHS c/w clamp bar and M8 cup square bolts complete with cone nuts through posts.
-
80 x 40 x 3 RHS c/w clamp bar and M8 cup square bolts complete with cone nuts through posts.
-
80 x 80 x 3 RHS c/w clamp bar and M8 cup square bolts complete with cone nuts through posts.
Applications
The SECUREGUARD-358 system is suitable for high security applications.
Gates
Standard gates are available or tailored-made to suit your requirements. All gates are supplied with rear hung adjustable hinges, pad-lockable drop-bolts, multi-holed to suit site conditions complete with anti-climb PROTECTOR GATE slide latch. See our gate range for further details.
Where the application specifically demands a heavy duty security mesh design to meet specifications including the use of CCTV, or where a visual deterrent is a primary consideration, our 358 Security Mesh system provides an ideal solution for a wide variety of high security perimeter and access control applications.
The climb resistant mesh (sometimes referred to as prison mesh or358 Prison Mesh) with its small apertures and welds at each intersection eliminate foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand cutting tools.
Also available Securi Mesh Plus for high security mesh fencing
Both security mesh and posts can be configured to meet Home Office specifications for use in prison, or other higher security detention or custodial facilities.
-
Mesh panels with wire welded at every intersection
-
Overlapped by a minimum of 75mm at posts to maintain integrity of protection
-
Unique vandal and tamper-proof panel to post fixing
-
Extremely strong
-
Can be stepped to accommodate sloping ground
-
Can be fixed to walls with cranked posts
-
Post tops can be customised to carry barbed/razor wire Rota-Spike Alarm-aFence electric fence lines, CCTV cameras etc
-
Matching gates available for pedestrian and vehicular access
Finishes
-
358 Prison Mesh Posts are galvanized to BS EN 1461 as standard
-
358 Prison Mesh Panels are Galfan zinc alloy coated as standard
-
358 Prison Mesh Posts and panels powder coated to BS EN 13438
-
Powder coating of panels and posts to any other (non standard) BS or RAL colour to special order
Standard Dimensions
| Height | Width | Mesh Centres | Post Sizes |
| 1.27m | 2.515m | 76.2 x 12.6 x 4mm | 80 x 60mm |
| 2.134m | 2.515m | 76.2 x 12.6 x 4mm | 80 x 60mm |
| 2.44m | 2.515m | 76.2 x 12.6 x 4mm | 80 x 60mm |
| 3.0m | 2.515m | 76.2 x 12.6 x 4mm | 80 x 60mm |
| 4.2m | 2.515m | 76.2 x 12.6 x 4mm | 80 x 60mm with spur |
| 5.2m | 2.515m | 76.2 x 12.6 x 4mm | 80 x 60mm with spur |
358 Mesh Fencing for many years in the china 358 Security Fence Prison Mesh is a high security fence. This type of fencing is still fairly new to the Australian market but is not new to us.
Our management team have been working with and installing 358 Mesh High Security Fencing for many years so are ideally suited to providing you with assistance and advice with this product.
It has been used in the UK as a prison fence and around high risk areas where a reliable security fence has been required. It has recently been used extensively and with great success by London Underground both supplied and erected by our company in high risk areas such as depots and to eliminate graffiti and cable theft.
We can supply only or supply and install heights ranging from 1.8m to 5m in a galvanised finish or polyester powder coated finish in a colour of your choice. If you have a specific requirement please contact us and receive the best possible help and advice about 358 Mesh Security Fencing
Security Gates
Collinson Fencing can also supply and erect single or double leaf gates to match your 358 Mesh Security Fencing. All gates are made to order meaning you can have the gate made to your exact specification.
Applications
358 Security Fence Prison Mesh Fencing can be supplied and erected
-
Security Fencing
-
Industrial Fencing
-
Commercial Fencing
-
School Fencing
-
Yard Fencing
-
Car Park Fencing
| 358 Security Fence High strength welded steel mesh with minimal apertures to prevent climbing. Mesh construction provides maximum visibility allowing effective monitoring. |
358 Security Fence
358 Security Fence is the most popular choice for applications requiring the maximum possible security.
Commonly specified for prisons, airports and military
installations, this style of fence provides the ultimate barrier to both climbing, and attack.
In addition to this unprecedented penetration delay, 358 fencing allows visibility, even along extended lengths of fencing, and when combined with our high visibility post system, allowing effective monitoring by CCTV cameras with minimal obstructions
| Inert powder coated finish is maintenance free and durable. Available in standard heights of up to 3m (non standard heights available upon request). |
Combination of closely spaced 4mm diameter steel wires presents the most severe barrier to cutting, hand tools are not effective, and power tools require extended operation and multiple blades.
| Specification:358 Security Fence -
Mesh Dimensions: 76.2mm wide by 12.7mm high. -
Horizontal wire diameter: 4mm -
Vertical wire diameter: 4mm -
Mesh configuration: Single horizontal and vertical wires, resistance welded at each intersection. -
Standard Finish: Hot dip galvanised to ISO 1461/1999 and polyester powder coated in one of the following colours: Grey, RAL 7023; Green RAL 6005;White RAL 9010;Anthracite RAL 7016. -
Non Standard Finish: A wide range of RAL colours are available, please call for price and availability |
|
|

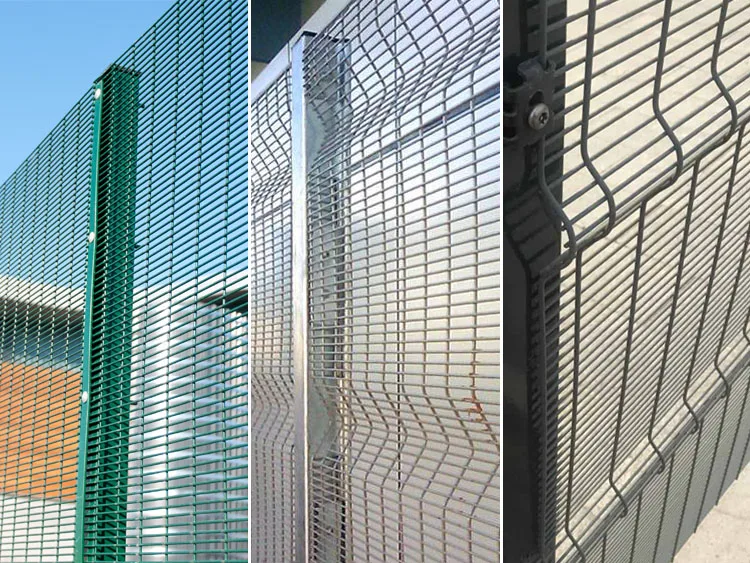

High Security Anti Climb 358 Mesh 5000mm width Images
|
