High Security 358 Mesh Fence

Name: High Security 358 Mesh Fence
Brand: LNF-Clear View Fencing
Price: 18.88 USD

Best High Security 358 Mesh Fence wholesale

Brand Name : LNF-Clear View Fencing

Model Number : 3.00mm wire 4.00mm wire 12.70mm*76.20mm

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

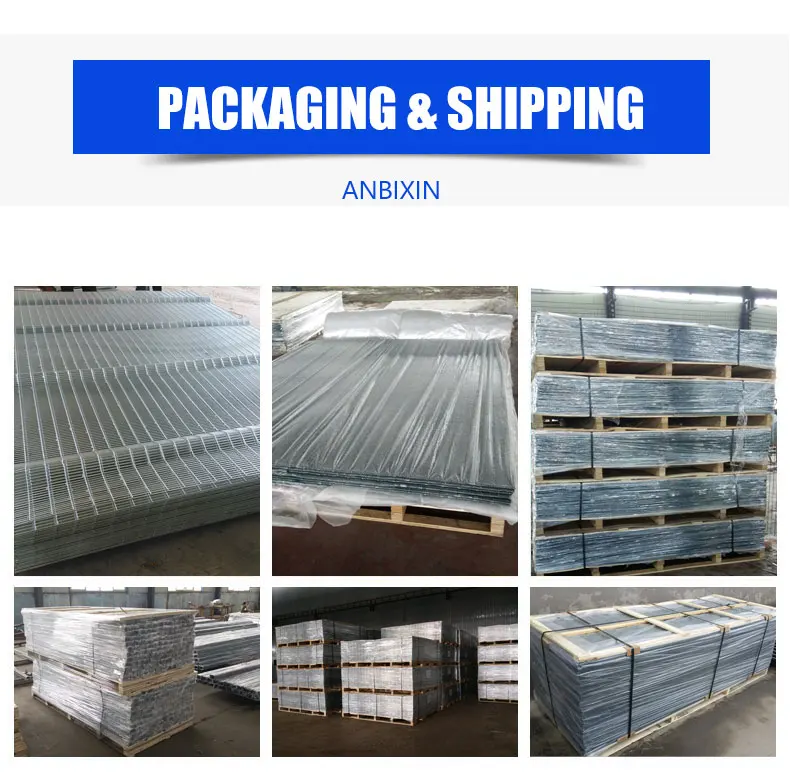

Packaging Details : All metal Pallets

Color : Dark Green,Black ,Yellow

Packing : Pallet

Feature : Anti Cut ,Climb ,High Desnsity

Type : Trellis & Gates

Finish : Hot Dipped Galvanized and Powder Coated

Panel Size : 2700mm x 4500mm

Contact Now

High Security 358 Mesh Fence

Quantity(Pieces) 1 - 1000 >1000

Est. Time(days) 15 To be negotiated

High Security 358 Mesh Fence

Wire Diameter	Mesh Size	Panel Height	Panel Width	Post Height	Post Type	Fittings
5/6/5mm 6/5/6mm 6/6/6mm 8/6/8mm	50x200mm 60x150mm 50x100mm	630mm	2000mm 2200mm 2500mm 3000mm	1000mm	Becaclip Post	Non clamps, Rain cap
		830mm		1200mm
		1230mm		1400mm	Square Post	Steel clamp,Plastic clamp,Rain cap
		1530mm		2000mm
		1830mm		2400mm
		2030mm		2600mm	Round Post	Steel clamp,Plastic clamp,Rain cap
		2430mm		3000mm

High Security 358 Mesh Fence

358 security Fence perfect to suit high-security protection which is ultimate welded mesh panel and consider personal visual providing excellent see sight through.
Why Called 358 Mesh Fence?

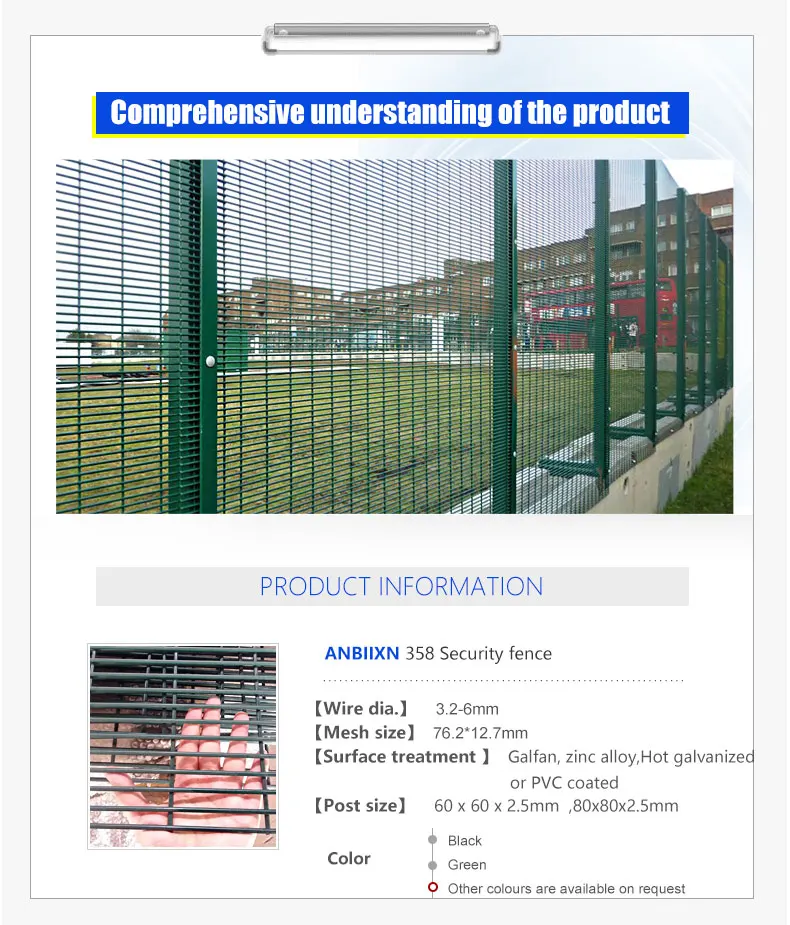

It is named by its specification 3" x 0.5" mesh opening, 8 gauge wire or approximate to 76.2mm x 12.7mm x 4mm mesh opening due to slightly opening providing ultimate protection against climbing and cut-through with excellent see-through visibility.

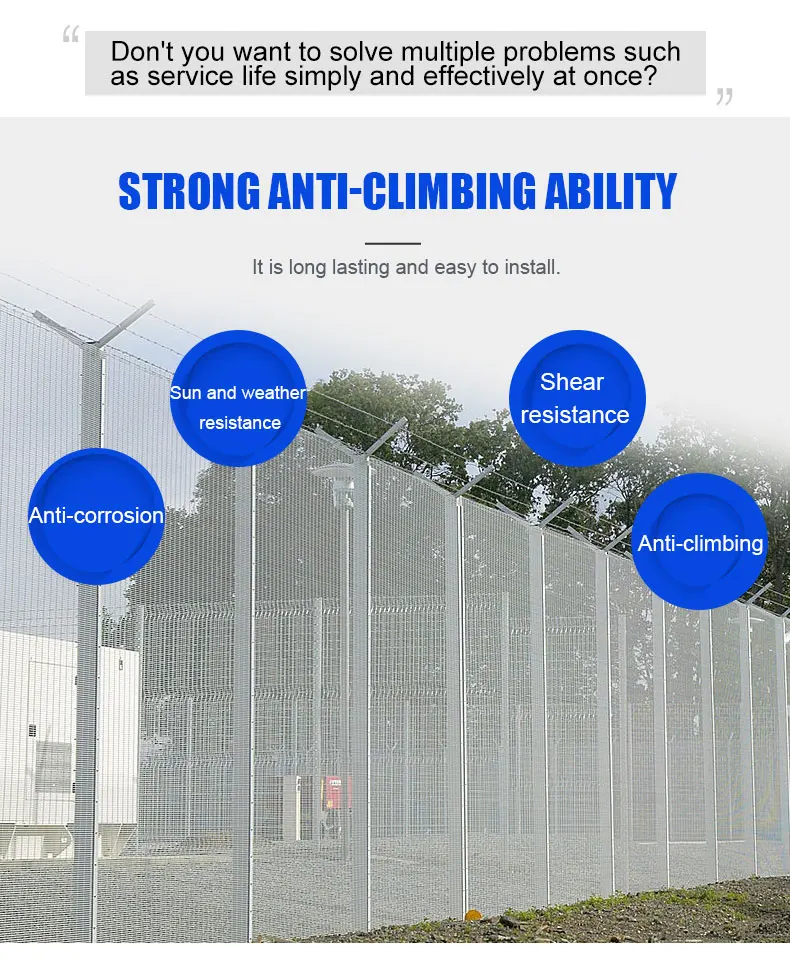

Features:

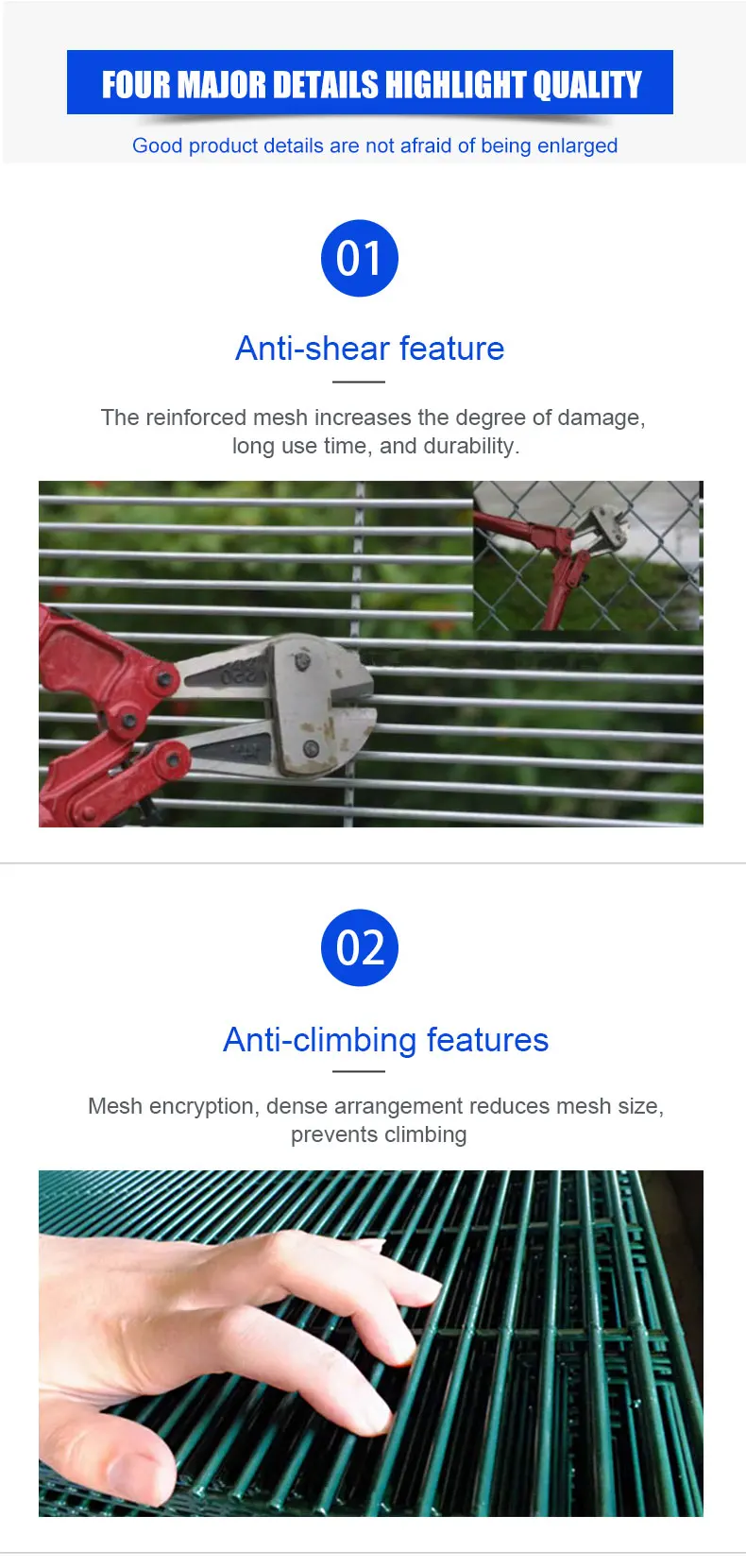

ANTI-CLIMB: More small openings, no toe or finger holds.
ANTI-CUT: robust wire and welded joints make cutting very difficult.
BETTER VISIBILITY: the flat, two-dimensional profile, easier to see through than chain link.

Specifications:
76.2mm x 12.7mm welded at each intersection.
Horizontal wires: 3.5mm diameter at 12mm centers on the attack face, and intermittent 3.5mmm double wires at 144 mm centers on the inside face.
Vertical wires: 5.5mm diameter at 75mm centers.
The post has a single row of M8 threaded inserts which allow the panels to be but fitted with specialized pressed steel brackets and are pitched at 2.55m centers.
How connect fence panel with fence post more details please contact our sales persons .
358 MESH FENCE SPECIFICATIONS

Fence Panel (Height X Width)	Fence Post(Height X Size X Thickness )	Clamp Bar(Height X Width X Thickness )	Clamp No (PCS)
2007mm x2515mm	2700mm x60x60x2.5mm	2007mm x60mm x5.00mm	7 or 14
2400mm x 2515mm	3100mmx60x60x2.5mm	2400mm x60mm x5.00mm	9 or 18
2997mm x2515mm	3800mmx80x80x2.5mm	2997mm x80mm x6.00mm	11 or 22
3302mm x2515mm	4200mmx80x80x2.5mm	3302mm x80mm x6.00mm	12 or 24
3607mm x2515mm	4500mmx100x60x3.0mm	3607mmx100mmx7.00mm	13 or 26
3607mm x2515mm	4500mmx100x100x3.0mm	3607mmx100mmx7.00mm	13 or 26
4204mm x2515mm	5200mmx100x100x4.0mm	4204mmx100mmx8.00mm	15 or 30
4496mm x2515mm	5500mmx100x100x5.0mm	4496mmx100mmx8.00mm	16 or 32
5207mm x2515mm	6200mmx120x120x5.0mm	5207mmx100mmx8.00mm	18 or 36

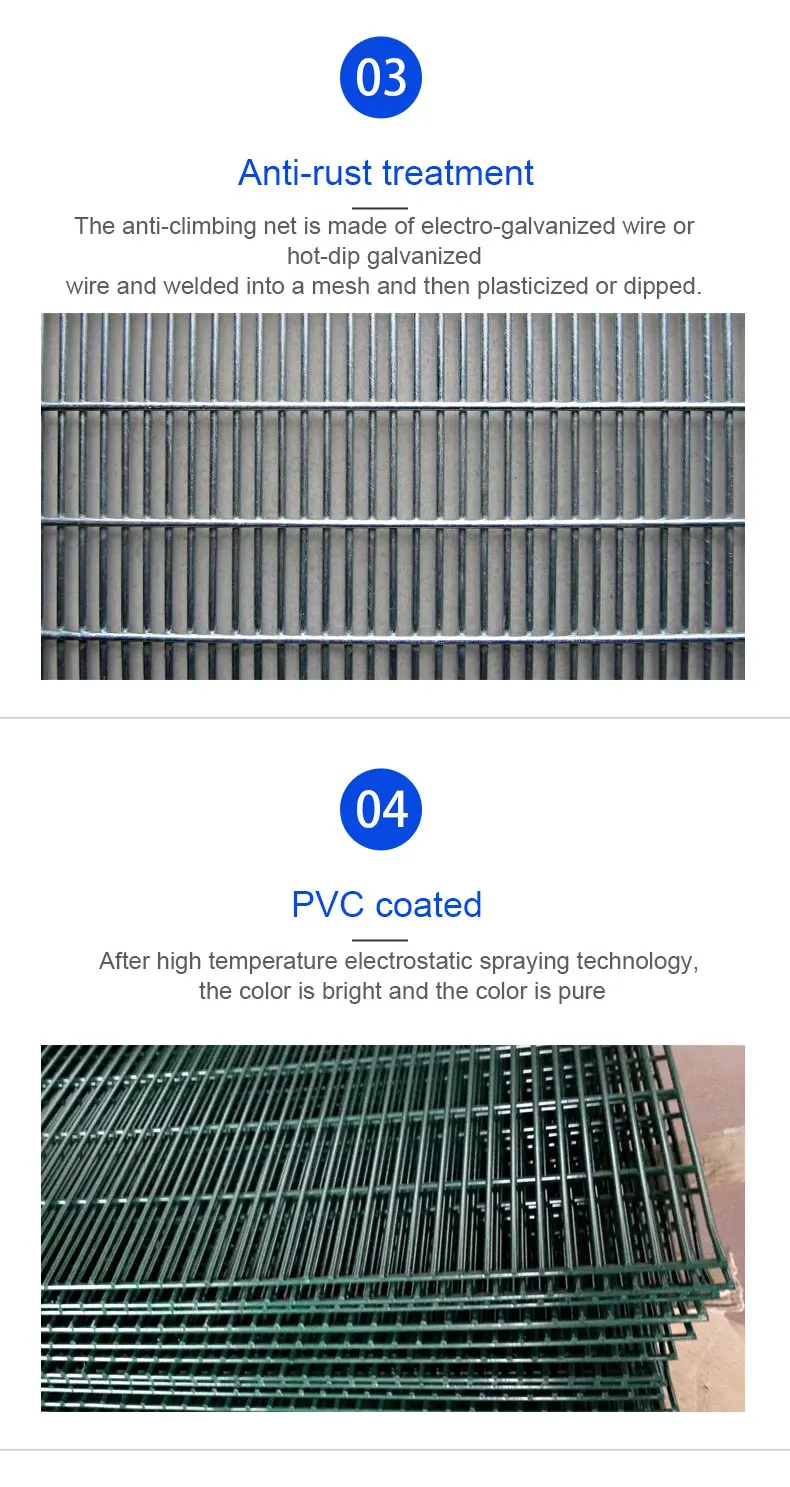

Surface treatment:
Fence panel:
1:Fence panel manufactured from electro galvanized hard drawn wire,then with powder coating;
2:ence panel manufactured from low carbon steel wire,then electro galvanized with powder coating;
3:Fence panel manufactured from low carbon steel wire,then with heavy hot dipped galvanized coating;
4:Fence panel manufactured from Galfan wire,then with powder coating.
Fence post profile:
1.Post section:80x60mm,80x80mm or 120x60mm;
2.Plate of post thickness:2.5mm or 3.0mm;
Coating:
Internally and externally galvanized (minimum 250g/m2 both sides combined). Powder coating(minimum60um).
Colors:
RAL6005,RAL9005.Other colors are also available.
Finish Top:
80x60mm and 120x60mm are metal caps.80x80mm is the plastic cap.

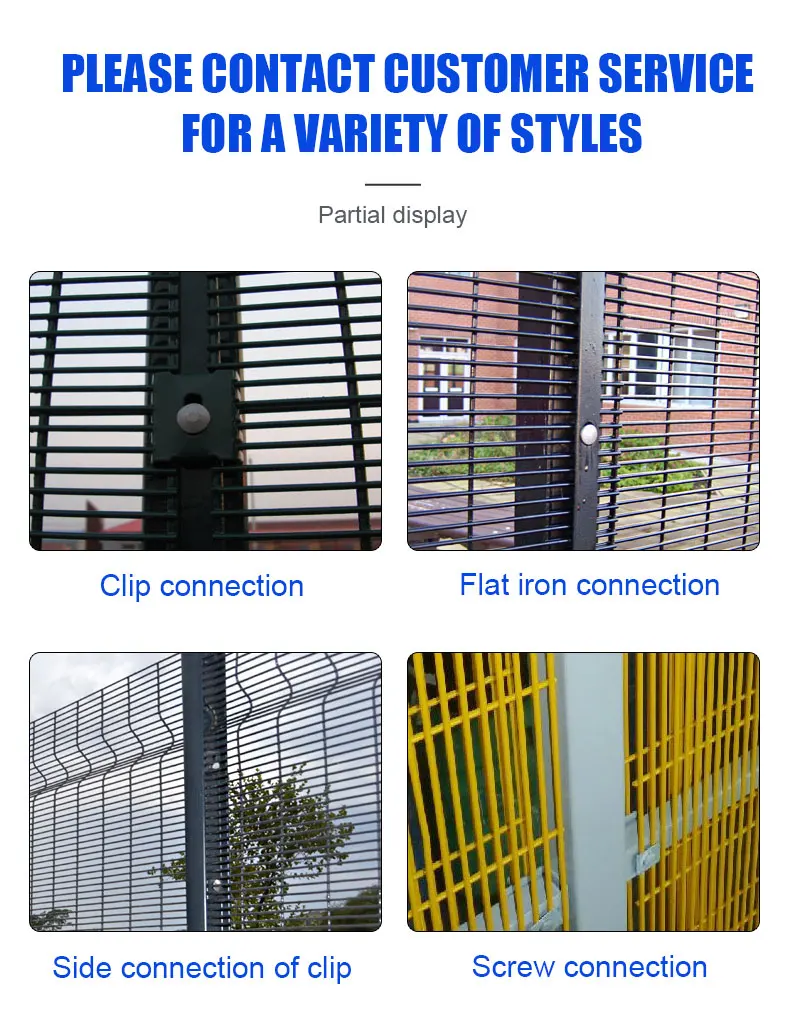

Fixing fitting:
1.Metal clips with post and mesh panel.2.Cover plate with bolts with post and mesh panel.

Clamp Bar	Clamp
